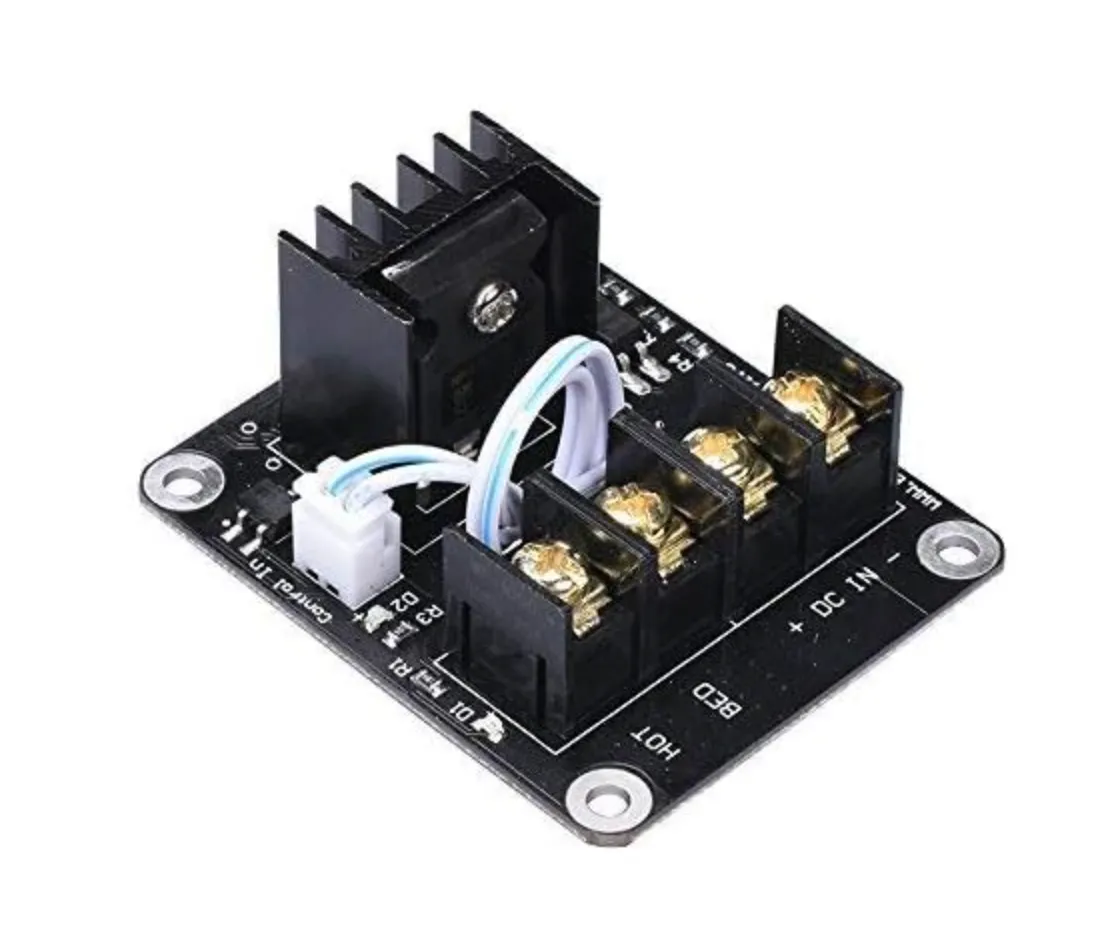

Heated bed power module
Based on powerful MOSFET HA210NO6
Size: 60*50mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance between holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working
